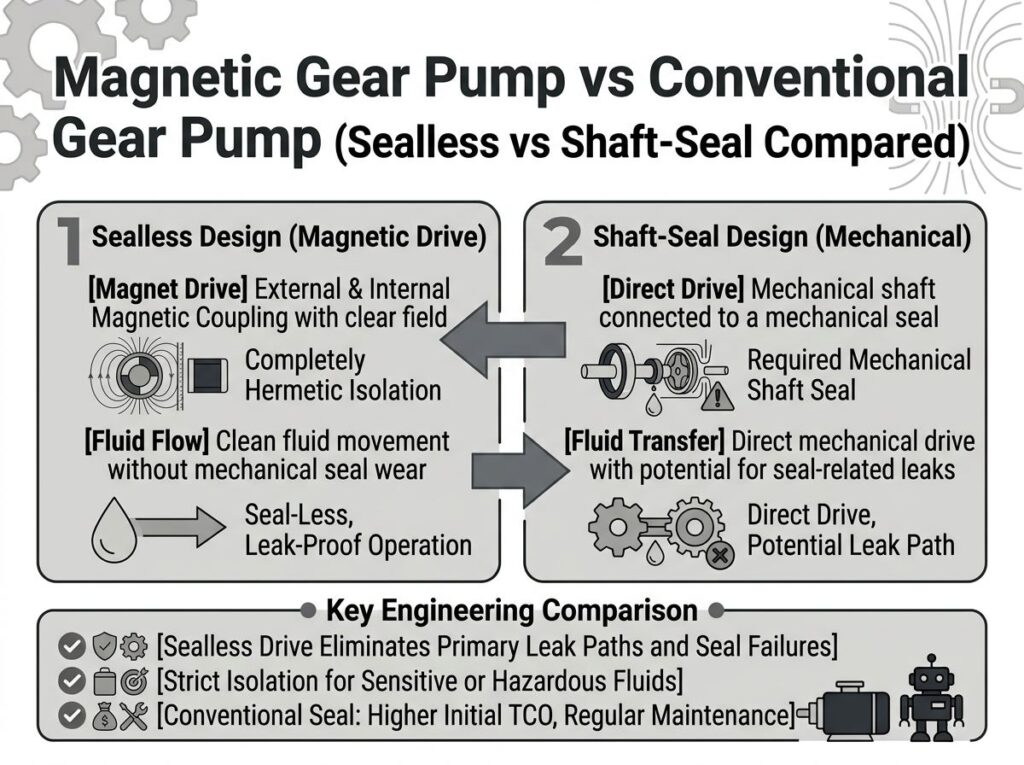

Magnetic Gear Pump vs Conventional Gear Pump: Sealless vs Shaft-Seal Compared

Quick Answer

What Is the Real Difference?

Strip away the marketing and both devices look nearly identical: a close-clearance housing, a pair of external or internal meshing gears, and flow that tracks speed as Q = D × N × ηv. The divergence is entirely in the drive interface:

• Conventional gear pump — motor shaft → coupling → gear shaft, passing through the housing wall. The shaft must be sealed against the fluid, which introduces a dynamic seal, a wear item, and a leak path.
• Magnetic gear pump — motor shaft → outer magnet → magnetic field → inner magnet → gear shaft. The field crosses a thin non-magnetic containment shell, so nothing rotating penetrates the wetted cavity. The seal becomes a static O-ring or weld.

That single interface decision drives almost every downstream difference — leakage risk, maintenance, efficiency, cost, and where each pump belongs. Both gear-pump types sit under the same standards umbrella: API 676 (4th ed., 2022) covers rotary positive-displacement pumps, while sealless designs are additionally governed by API 685 (3rd ed., 2022) for the containment and leak-detection requirements. For the motor side, both rely on IEC 60034 duty/thermal ratings and NEMA MG 1 efficiency tables.

How a Conventional Gear Pump Works

1. Suction. As teeth disengage on the inlet, the expanding cavity drops pressure and draws fluid in.
2. Transport. Fluid is trapped in pockets between the teeth and bore and carried around the periphery.
3. Discharge. Teeth re-mesh at the outlet, collapsing the cavity and forcing fluid into the line.
4. The seal. The motor shaft enters the housing through a mechanical seal (rotating + stationary faces, plus an elastomer secondary seal) or gland packing. This seal is the classic failure point.

How a Magnetic Gear Pump Works

1. Micromotor spins the outer magnet. A BLDC (or AC) motor turns the outer drive magnet assembly.
2. Field crosses the shell. The rotating field passes through the stationary, non-magnetic containment shell (the single part that defines a sealless pump).
3. Inner magnet follows in lockstep. The inner magnet — rigidly fixed to the drive gear — is dragged around at identical speed with zero slip (synchronous coupling).
4. Gears pump. The gear set moves fluid exactly as a conventional gear pump does.
5. No leak path. With no shaft penetration, the only seals are static; the coupling also acts as an overload clutch that decouples (T ∝ 1/g² pull-out) if the gears jam.

The complete gear-pump + coupling mechanics are detailed in our magnetic gear pump explainer, and the miniature end of the range in how a micro magnetic pump works.

Feature Comparison Table

Efficiency, Temperature & Torque: The Real Trade-offs

Eddy-current loss — the magnetic pump’s one efficiency tax

The same rotating field that transmits torque also induces eddy currents in a conductive containment shell, wasting power as heat. On a metallic shell the loss is roughly 5–8% at typical duty, climbing with shell diameter, speed and wall thickness (1–5 kW on large couplings; up to 20 kW reported at high power). The fix is material, not size:

• Non-metallic shells (ceramic, PEEK, FRP) carry no eddy current — the loss vanishes, which is why compact, high-efficiency and low-power OEM pumps favor them.
• Metallic shells (Hastelloy C, 316 SS) keep high pressure/temperature but pay the 5–8% tax; advanced hybrid shells cut eddy loss by up to 90% while holding ~300 °C / 500 bar.

Magnet and seal temperature limits

Conventional gear pumps are limited by the seal elastomer (often NBR/EPDM, degrading sharply above ~100–150 °C). Magnetic gear pumps are limited by the magnet grade: NdFeB weakens around 80–150 °C, SmCo stays stable above 300 °C, and non-metallic shells cap near 120–150 °C while metal shells reach ~260 °C.

Torque and power

Both types share the hydraulic torque relationship:

Thyd = Δp × Vd / (2π × ηm)   and   Phyd = Δp × Q / 600

The magnetic pump adds one sizing rule the conventional pump doesn’t need: the coupling pull-out torque (scaling with 1/g²) must exceed the worst-case gear load by 1.2–1.5×, or the magnets slip apart under startup viscous torque. For drive selection, pair the pump with an IE4-class BLDC micromotor sized ≥1.15× shaft power — see our torque calculation guide and BLDC vs servo breakdown.

Where Each Wins: Applications & OEM Equipment

Choose a magnetic gear pump when…

• Fluid is hazardous, toxic, expensive, volatile or high-purity — strong acids, solvents, pharmaceuticals, reagents, fuels, inks. Zero leakage is a safety/compliance requirement, not a preference.
• A leak or seal stop is unacceptable — continuous metering, diagnostic instruments, fuel cells, electronics liquid-cooling loops.
• You need compact, low-flow, low-power OEM integration. In miniature fluid systems the shaft seal is proportionally the most failure-prone part; the sealless head plus a small BLDC drive is why OEM micro-pump makers (e.g. Micropump) lead with magnetic gear heads — flow from ~0.4 µL to 42 L/min, pressure to 80 bar, under 0.5 kg.

Choose a conventional gear pump when…

• The fluid is benign and lubricating — clean oil, fuel, water — where a small leak is acceptable.
• You need peak efficiency on high-viscosity fluids (resins, adhesives, syrups) or very high pressure, and magnetic slip / eddy heat would bite.
• Dry-running or mild solids are expected and the seal-maintenance overhead is an accepted trade-off for lower upfront cost.

How to Choose (7 Steps)

1. Classify the fluid. Hazardous / pure / volatile → magnetic. Benign / lubricating → either, conventional is cheaper.
2. Define the duty. Flow (Q = D × N × ηv), discharge pressure, duty cycle (S1 vs S3 per IEC 60034-1), and ambient.
3. Decide the leak policy. Zero-leakage requirement → magnetic; small leak acceptable → conventional.
4. Check efficiency budget. If eddy loss matters, pick a non-metallic shell (magnetic) or stay conventional for high-viscosity throughput.
5. Verify temperature. Seal elastomer vs magnet grade (NdFeB → SmCo above ~150 °C) and shell material.
6. Size the drive. Hydraulic power + losses, motor ≥1.15×; for magnetic, confirm coupling pull-out ≥1.2–1.5× load and BLDC efficiency (IE4).
7. Confirm compliance. API 676/685, CE, RoHS/REACH for export; IEC 60601-1 / ISO 13485 for medical/analytical targets (see CE for European OEMs).

Common Engineering Mistakes

• Picking a magnetic pump then running it dry. The self-lubricating bearings die in seconds — always add a dry-run interlock or flow switch.
• Ignoring the eddy-current tax on a metal shell. You inherit 5–8% loss and heat; a non-metallic shell often reclaims it at low power.
• Forgetting coupling pull-out torque. Below 1.2–1.5× load the magnets slip and the pump stalls on startup viscous torque.
• Using a conventional gear pump on toxic fluid “to save money.” Seal leakage and its downtime cost (5–10× the seal) erase the savings.
• Choosing magnetic drive for a gritty slurry. Particles lap the shell and magnet; a conventional pump (or a strainer + magnetic pump) is the right call.
• Sizing the micromotor at 3× instead of ~1.15×. Oversizing wastes board space and battery in compact OEM designs.
• Specifying motor and pump separately. For OEM integration, co-spec the BLDC winding, voltage, and controller with the pump head — see OEM motor manufacturing.

Troubleshooting: Problem → Cause → Solution

FAQ

What is the main difference between a magnetic gear pump and a conventional gear pump?

Both are positive-displacement gear pumps with identical pumping action. The only structural difference is how motor torque crosses the pressure boundary. A conventional gear pump passes a motor shaft through the housing, needing a dynamic mechanical seal that leaks and wears. A magnetic gear pump replaces that shaft with a magnetic coupling — an outer magnet on the motor and an inner magnet on the gear shaft, separated by a static containment shell — so there is no rotating penetration and no seal to leak.

Which gear pump leaks less, magnetic or conventional?

The magnetic gear pump. It has no dynamic shaft seal; the only seals are static O-rings or welds at the shell, so it is inherently leak-free. A conventional gear pump always has a rotating shaft seal that wears — mechanical seals account for roughly 70% of pump maintenance cost, with typical seal life of 2,000–5,000 hours versus 20,000+ hours for a magnetic drive gear pump.

Is a magnetic gear pump less efficient than a conventional gear pump?

Usually yes, by a small margin. A metallic containment shell induces eddy currents from the rotating field, costing roughly 5–8% efficiency (more at high speed or power — up to 1–5 kW on large couplings). A conventional gear pump has no such loss and runs 80–95% efficient. You can recover most of the gap with a non-metallic shell (ceramic/PEEK/FRP), which is why compact, low-power OEM pumps favor non-metallic shells.

Can a magnetic gear pump run dry or handle abrasive fluids?

Poorly on both. Its product-lubricated bearings are cooled by the pumped fluid, so dry running destroys them in seconds; abrasive particles lap the inner magnet and shell. A conventional gear pump tolerates brief dry running and mild solids better, though gears and seal still wear. For clean, corrosive, toxic, volatile or high-purity liquids, the magnetic gear pump is safer.

Why do magnetic gear pumps dominate compact, low-flow OEM equipment?

In a miniaturized device the shaft seal is proportionally the most failure-prone, hardest-to-service part, and a leak or maintenance stop is unacceptable — the sealless coupling removes it. Low-flow metering also needs a leak-free, contamination-free path, and the small BLDC micromotor with no seal drag keeps power low so the whole head fits in a few centimetres.

How do I decide between a magnetic and a conventional gear pump?

Choose magnetic when the fluid is hazardous, toxic, expensive, volatile or high-purity, when a leak or seal maintenance is unacceptable, or when you need compact, low-flow, low-power OEM integration. Choose conventional when the fluid is benign and lubricating, when you need the highest efficiency at high viscosity or very high pressure, or when dry-running and mild solids are expected and a small leak is acceptable for lower cost.
